Understanding Butterfly Valves: A Key Component in Flow Control Systems

In the world of industrial piping systems, butterfly valves play a crucial role in regulating and isolating flow. Their simple design, cost-effectiveness, and quick operation make them a popular choice in various industries including water treatment, oil and gas, chemical processing, and HVAC.

What is a Butterfly Valve?

A butterfly valve is a quarter-turn valve that uses a rotating disc to control the flow of fluid through a pipe. When the valve is fully open, the disc is rotated a quarter turn so that it allows almost unrestricted flow. When closed, the disc blocks the flow entirely.

Main Components:

Body: The housing of the valve.

Disc: The rotating element that opens or closes the valve.

Stem: Connects the disc to the actuator or handle.

Seal: Ensures leak-free operation.

Types of Butterfly Valves:

1. Concentric – Basic design with the stem centered in the disc.

2. Double Eccentric (High Performance) – Better sealing for high-pressure applications.

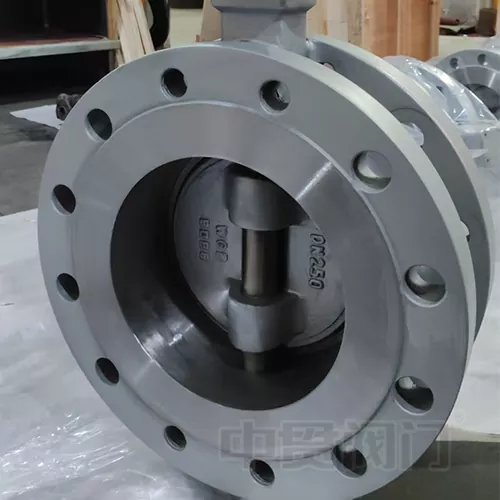

3. Triple Eccentric – Used in demanding applications with high temperatures and pressures.

Advantages of Butterfly Valves:

Compact and lightweight

Fast operation (90° turn from fully open to fully closed)

Low pressure drop

Lower cost compared to other valve types

Easy installation and maintenance

Common Applications:

Water distribution systems

Wastewater treatment plants

Fire protection systems

HVAC systems

Marine and oil industries

Conclusion

Butterfly valves are a versatile, reliable, and economical solution for fluid flow regulation. Their simple design and wide range of applications make them an essential component in many industrial systems.
