Choosing the Right Cylindrical Fuse for Your Application

When selecting a cylindrical fuse, it’s not just about the size — it’s about matching the right characteristics to your specific application. Whether you’re protecting a small device or a large piece of industrial machinery, the right fuse ensures safety and performance.

Factors to Consider

1. Current Rating

Choose a fuse with a current rating slightly above your system’s normal operating current. Too low, and you’ll get nuisance trips. Too high, and the fuse won’t protect effectively.

2. Voltage Rating

Make sure the fuse can handle the maximum voltage in your circuit. Using a fuse with too low a voltage rating can be dangerous.

3. Breaking Capacity

This tells you the maximum fault current the fuse can safely interrupt. High-capacity fuses are essential for industrial environments where large surges are possible.

4. Time-Delay vs. Fast Acting

- Fast-acting fuses trip quickly and are ideal for sensitive electronics.

- Time-delay fuses allow short bursts of current, like a motor’s start-up surge, without blowing.

Material and Design

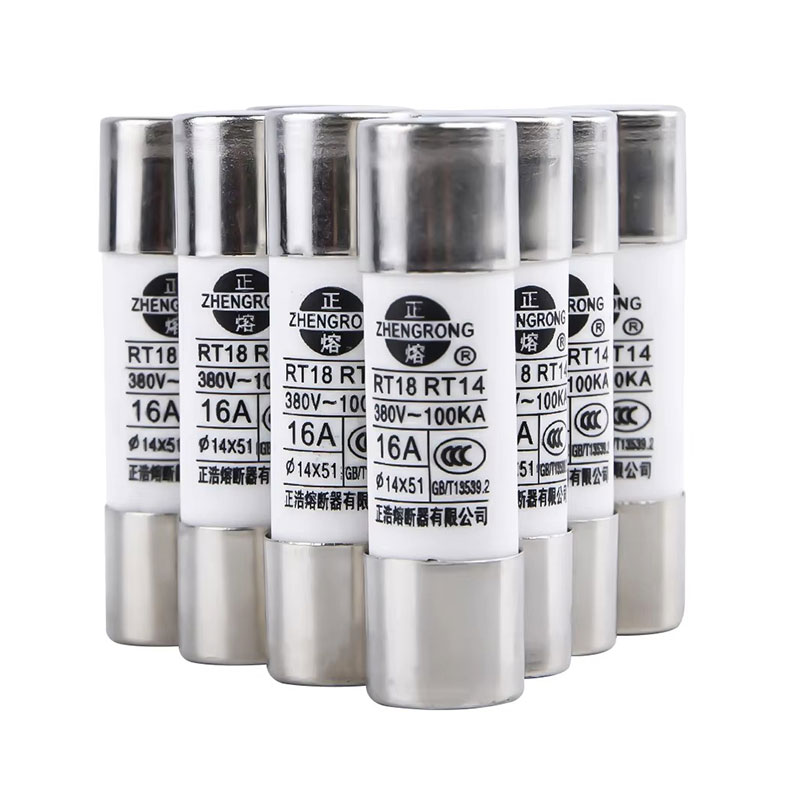

Modern cylindrical fuses may come with ceramic or glass bodies. Ceramic fuses are generally used in higher-load environments because they withstand more heat and pressure. Glass fuses are often used in lower-voltage applications where visual inspection is useful.

Pro Tips for Installation

- Always disconnect power before replacing a fuse

- Use the exact same rating and size as the original

- Inspect the fuse holder for damage or corrosion

Conclusion

Cylindrical fuses may be small, but they play a major role in keeping electrical systems safe. By understanding their function and selecting the right type, you can ensure reliable protection for everything from household electronics to heavy-duty machinery.
