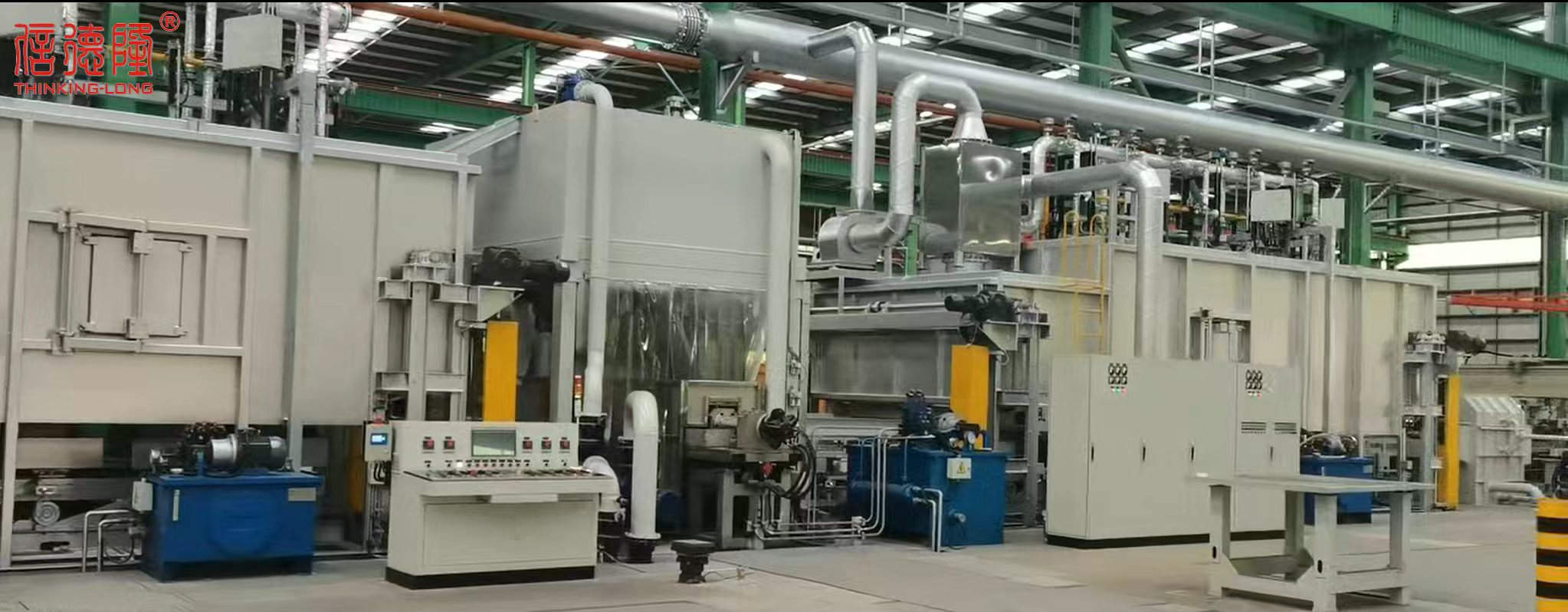

Walking Beam Quenching and Tempering Production Line for Oil Well Pipes: Key Import Benefits

A walking beam quenching and tempering line is only as good as the decisions made at the import stage. For oil well pipes destined for high-pressure or sour environments, the difference between a dependable line and a costly rework machine often shows up months after commissioning. This article zeroes in on the key import benefits that deserve your attention—build integrity, uniform quenching, energy draw, and vendor support—and explains why more buyers are pausing to check THINKING-LONG before signing off.

Why Walking Beam Quenching Outperforms Batch Furnaces for Oil Country Tubular Goods

In the production of oil country tubular goods, heat treatment has to deliver consistent mechanical properties across every joint. Walking beam quenching achieves this by moving each tube through the furnace in a controlled, continuous index. There is no stacking, no edge effects, and no reliance on operator judgment for placement. Each section of pipe sees the same time-temperature profile before it drops into the quench, which means hardness and toughness stay within a much tighter band than batch processing can offer.

Batch furnaces often struggle with uneven heating because tubes are loaded in bundles or layers. The outer tubes shield the inner ones, creating temperature gradients that show up later as inconsistent yield strength or excessive residual stress. A walking beam system avoids this by keeping tubes separated and advancing them one step at a time. The resulting microstructure after quenching is more uniform, and distortion is reduced because thermal expansion and contraction happen evenly around the circumference and along the length.

There is also a throughput advantage that is not just about speed. Walking beam lines can be designed to match the quenching tank and tempering furnace as a single synchronized process. This reduces handling damage and shortens the time between austenitizing and quenching, which is critical for low-carbon and microalloyed grades used in sour service or high-collapse applications. For mills running thousands of joints per shift, that consistency and integration outperform what batch furnaces can reliably deliver.

Uniform Heating That Prevents Quench Cracking Before It Starts

Quench cracking rarely appears out of nowhere. It usually starts with uneven temperature distribution during the heating stage. When one section of a part expands faster than its neighbor, internal stress builds long before the quench begins. Uniform heating removes that early tension. By bringing the entire cross-section to the same temperature at the same rate, the material enters the quench in a balanced state.

The real advantage shows up in complex geometries. Thin walls and thick bosses heat at different speeds if the furnace or induction coil isn't tuned properly. That imbalance creates a hidden stress map that later gets locked in by rapid cooling. Uniform heating doesn't just raise the average temperature; it flattens the stress map. As a result, the martensitic transformation starts more evenly, and the part can handle the volumetric expansion without tearing itself apart.

In practice, this means slowing down the ramp near critical temperature ranges, using multi-zone controls, or repositioning parts so hot spots don't form. The goal isn't simply to avoid cracks on the surface but to prevent the underlying stress gradients that make cracking possible. When heat is delivered uniformly, the quench becomes a controlled transformation rather than a shock.

Energy Recovery That Turns Waste Heat Into Lower Operating Costs

Waste heat often drifts out of exhaust stacks unnoticed, but in modern facilities it represents a quiet reservoir of usable energy. By capturing thermal output from compressors, furnaces, or process cooling loops, businesses can feed that heat back into space heating, domestic hot water, or preheating for industrial steps. The result is a direct reduction in the amount of purchased fuel or electricity needed to maintain core operations.

What makes this approach practical is its fit with existing infrastructure. Heat exchangers, thermal storage tanks, and control systems can be retrofitted without halting production. In many cases, the payback period dips below two years because the recovered energy offsets a utility bill line that otherwise climbs every season. The key is matching the temperature and timing of waste heat with a real on-site demand, rather than forcing a generic solution.

Beyond the ledger, energy recovery reshapes how a plant thinks about waste. It turns a byproduct into a working asset, trimming both carbon footprint and energy spend simultaneously. Operators who monitor waste heat streams closely often discover additional low-grade sources that were previously ignored, unlocking savings that compound as energy prices shift.

Automated Pipe Handling That Reduces Labor and Surface Damage

Automated pipe handling systems have redefined how tubulars are moved on the rig floor, eliminating much of the manual labor that once slowed operations and increased risk. By integrating mechanized arms, conveyors, and sequencing software, these systems lift, rotate, and position pipe with consistent precision, requiring only minimal operator oversight. The result is a faster connection cycle and fewer personnel in the red zone, which directly lowers the chance of fatigue-related incidents and keeps crews focused on higher-value tasks.

Beyond labor savings, the real advantage lies in surface protection. Traditional handling methods often rely on chains, slings, or rough contact points that can gouge threads, dent pipe bodies, or scrape protective coatings. Automated grippers and rollers are engineered to distribute clamping force evenly, using non-marring materials and controlled torque to avoid metal-to-metal impact. This means premium tubulars, especially those with sensitive connections or corrosion-resistant alloys, arrive at the wellbore without costly rejects or rework.

Field data from recent deployments show a measurable drop in both non-productive time and pipe repair expenses after switching to automated systems. Operators report that the consistency of the machine motion reduces make-up damage, while the smaller crew footprint cuts indirect costs such as training, PPE, and incident response. In high-volume drilling programs, these gains compound quickly, making automated pipe handling not just a safety improvement but a practical way to protect both the workforce and the capital tied up in downhole assets.

Rapid Grade Changeovers for High-Mix Oil Well Pipe Mills

Frequent grade switching in oil well pipe mills turns every minute of downtime into lost throughput. Quick-change tooling, pre-staged die sets, and automated recall of rolling parameters routinely shrink changeovers from two hours to under thirty minutes. Mills that treat grade changes as a standard cycle rather than an interruption keep a steadier rolling rhythm and protect delivery schedules.

Cross-contamination control is just as critical as speed. Residual steel from a high-chrome grade can ruin a batch of carbon steel casing if cleanup is rushed. Dedicated material handling paths, verified washout sequences, and sensor-confirmed fixture changes keep each alloy within its specified envelope. Some operations use RFID-tagged tooling that blocks the line until the correct setup is detected.

Production sequencing also drives changeover efficiency. Grouping orders by wall thickness and steel family reduces full cleanup cycles. Tracking actual changeover time—not just the mechanical swap, but the wait for inspection release—often exposes the real bottleneck. Eliminating that idle wait frequently yields more capacity than investing in faster rolling equipment.

Long-Term Reliability Means Fewer Breakdowns and More Uptime per Shift

The practical payoff of long-term reliability shows up in the shift log before anywhere else. Machines that hold up under continuous load don't force operators into unplanned stops, and maintenance crews can stay on preventive schedules instead of chasing breakdowns. Over an eight-hour shift, even a single avoided fault can mean an extra 45 minutes of actual production—time that goes straight to throughput rather than troubleshooting.

That kind of dependability usually comes from deliberate design choices: oversized bearings, conservative thermal limits, sealed connections, and controls that trip on overloads before damage spreads. When those pieces work together, dust, heat, and minor voltage swings become background noise instead of failure triggers. The result is less time waiting on a technician and more shifts that end with the line still running.

FAQ

Conclusion

Walking beam quenching and tempering lines bring a distinct edge to oil well pipe production, largely because the continuous movement of each pipe through the furnace avoids the uneven heating common in batch processing. Rather than stacking dozens of joints in a static pile where outer surfaces heat faster than inner walls, the walking beam keeps every length moving at a steady pace. This consistency stops quench cracking before it can start, since the entire cross-section reaches the same austenitizing temperature before water or polymer quenching. The payoff shows up in higher yields of API grades like L80, P110, and Q125 with fewer rejects. On top of that, heat recovery systems capture exhaust from the tempering zone and reroute it to preheat combustion air or feed a waste-heat boiler. The result is not just lower gas consumption per ton, but a smoother thermal profile that further protects material properties.

Automated pipe handling replaces most manual transfer steps, so there is far less risk of surface dings or thread damage that often occur when workers use chains or hooks. Loaders and unloaders align each joint precisely on the walking beam supports, cutting labor costs while keeping the premium connections intact. For high-mix mills that switch between 2-3/8 inch tubing and 13-3/8 inch casing within a shift, the line's control system adjusts stroke speed, quench intensity, and tempering soak time in minutes rather than hours. That flexibility lets a single line handle drill pipe, tubing, and casing without lengthy changeovers. Long-term reliability comes from the simple rugged design of the walking beam mechanism itself—fewer moving refractory parts than a rotary hearth, and far less thermal cycling stress than a batch car-bottom furnace. Operators report more stable uptime per shift, less unscheduled downtime, and easier preventive maintenance because wear points are visible and accessible. For import buyers, these operational gains translate directly into lower total cost of ownership and faster delivery on oil country tubular goods contracts.
