What is a flange insulation gasket kit?

A flange insulation gasket kit is a set of components used to provide electrical insulation and sealing between flanged pipe connections in various industrial applications. These kits are designed to prevent galvanic corrosion, fluid leakage, and electrical conductivity across the flange joint. Here's what typically comes in a flange insulation gasket kit:

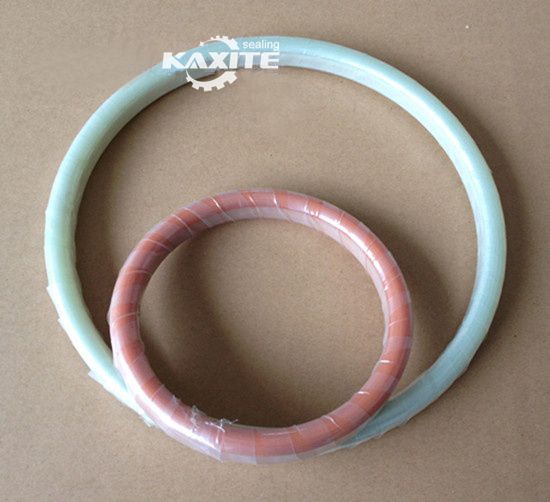

1. Insulation Gaskets: The primary component of the kit is the insulation gaskets, which are placed between the flange faces to provide electrical insulation and sealing. These gaskets are typically made of non-conductive materials such as phenolic, neoprene, or non-metallic laminate composites. They come in various shapes and sizes to match different flange configurations, including raised face (RF), flat face (FF), and ring joint (RTJ) flanges.

2. Insulation Sleeves: In some kits, insulation sleeves or washers may be included to provide additional insulation and prevent direct contact between the flange bolts and the flange faces. These sleeves are typically made of non-metallic materials such as nylon, polyethylene, or Teflon.

3. Insulating Washers: Insulating washers or spacers may be provided to separate the flange bolts from the flange faces and prevent electrical conductivity through the bolted connection. These washers are often made of non-metallic materials or coated with insulating coatings.

4. Sealing Components: Along with providing electrical insulation, flange insulation gasket kits also include sealing components such as rubber or elastomeric gaskets to prevent fluid leakage between the flange faces. These sealing elements are typically integrated into the insulation gaskets or provided as separate components.

5. Installation Hardware: The kit may include nuts, bolts, and washers necessary for installing the insulation gaskets and sealing components onto the flanged connections. These hardware components are often made of corrosion-resistant materials such as stainless steel or non-metallic materials coated with corrosion-resistant coatings.

6. Assembly Instructions: Detailed assembly instructions or guidelines may be provided with the kit to ensure proper installation and use of the insulation gaskets and sealing components. These instructions typically include information on torque specifications, bolt tightening sequences, and recommended installation practices to achieve effective sealing and insulation.

Flange insulation gasket kits are commonly used in industries such as oil and gas, petrochemical, chemical processing, power generation, and water treatment, where flanged connections are exposed to corrosive environments, high temperatures, and high-pressure conditions. By providing electrical insulation and sealing, these kits help prevent costly damage, downtime, and environmental hazards associated with fluid leakage and galvanic corrosion in flange joints.
