Things You Should Know About D-Sub Connectors

D-Sub connectors, also known as D-subminiature connectors, are a versatile and widely used type of electrical connector that has been around since the 1950s. They’re easily recognizable by their D-shaped metal shield, which provides mechanical strength and helps prevent incorrect connections. Though older in design, D-Sub connectors are still widely used in various applications due to their reliability, versatility, and ability to carry both power and signals.

In this blog, we’ll explore the key things you should know about D-Sub connectors, from their types and uses to their benefits and common applications.

1. Understanding the D-Shape

The "D" in D-Sub connectors refers to the distinct D-shaped shell that surrounds the connector pins. This shape is essential because:

- Prevents misalignment: The D-shape ensures that connectors can only be plugged in one way, avoiding incorrect connections.

- Mechanical protection: The metal shield protects the connector's pins and ensures that they remain aligned, even when plugged in multiple times.

2. Different Types of D-Sub Connectors

D-Sub connectors come in various sizes and configurations, designed for different pin counts and applications. The most common types include:

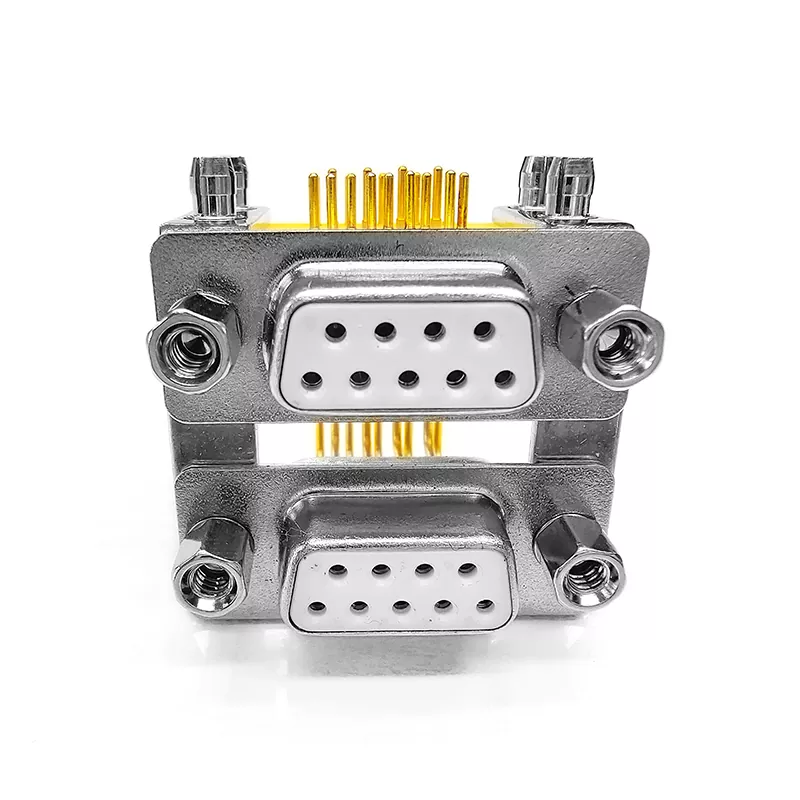

- DE-9: This is one of the most familiar types, often referred to as a "DB9" connector. It has 9 pins and is commonly used for serial communication (RS-232).

- DA-15: With 15 pins, this connector type is commonly found in older computer video adapters (VGA) and some joystick connections.

- DB-25: This 25-pin connector is used for parallel ports on older PCs and can handle both serial and parallel data transmissions.

- DC-37: This larger 37-pin D-Sub connector is typically used in high-density applications, where more pins are required for data transfer or power.

Each type is designated by its size and pin count, with letters like "E," "A," "B," "C," and "D" referring to the physical shell size.

3. Applications of D-Sub Connectors

D-Sub connectors are used in a wide variety of industries due to their flexibility. Common applications include:

- Computers and peripherals: D-Sub connectors are found in older devices such as serial and parallel ports for connecting mice, keyboards, printers, and other peripherals.

- Industrial equipment: In many industrial settings, D-Sub connectors are used to handle serial communication between controllers, sensors, and machinery.

- Telecommunications: D-Sub connectors are often used for data transmission in telecommunications equipment.

- Aerospace and military: Ruggedized D-Sub connectors are used in avionics, defense, and aerospace applications due to their ability to withstand harsh environments.

- Audio and video: D-Sub connectors, such as the 15-pin VGA connector, are still used in legacy video systems to connect monitors and projectors.

4. Pin Configuration

D-Sub connectors come with different pin configurations depending on the specific model. Pins can be either male (pins) or female (sockets), and connectors are often available in different pin counts, ranging from 9 to 50 pins or more.

- Male connectors (plugs): Typically have protruding pins and are used as the part of the connection that fits into the female connector.

- Female connectors (sockets): Have recessed holes designed to receive the male pins. These are commonly mounted on devices or equipment.

5. Types of Terminations

D-Sub connectors can be attached to wires or circuit boards using various termination methods, each with its own advantages:

- Solder termination: Provides a strong, reliable electrical connection by directly soldering wires to the pins. This is ideal for applications where a permanent and robust connection is needed.

- Crimp termination: Wires are crimped into metal contacts, which are then inserted into the connector housing. This method is quicker for assembly and allows for easier repairs or modifications.

- PCB mount: Some D-Sub connectors are designed to be mounted directly onto printed circuit boards (PCBs). These connectors have pins that align with the PCB's solder points.

6. Signal and Power Capabilities

D-Sub connectors are versatile because they can carry both data signals and power. This makes them useful in applications that require multiple functions in a single connection. They can transmit:

- Serial communication signals: Especially in legacy computer systems using RS-232, RS-422, and RS-485 protocols.

- Video signals: The 15-pin VGA connector transmits analog video signals to monitors.

- Power: Some D-Sub connectors can carry low voltage power, making them suitable for applications that require both power and data in one connection.

7. Shielding and EMI Protection

The metal shell of D-Sub connectors offers shielding from electromagnetic interference (EMI), making them suitable for use in environments where electrical noise could disrupt signals. The EMI shielding capability ensures stable and reliable data transmission, even in noisy environments like factories or industrial settings.

8. Mounting Options

D-Sub connectors can be mounted in different ways depending on the application:

- Panel mount: D-Sub connectors can be secured to a panel or chassis, allowing external devices to connect to the internal wiring or PCB.

- Cable mount: Connectors can also be used at the end of a cable, allowing for easy connections between two pieces of equipment.

- PCB mount: As mentioned earlier, D-Sub connectors can be directly mounted onto PCBs, making them ideal for internal connections within devices.

9. Durability and Longevity

While D-Sub connectors are an older technology, their robust design makes them highly durable. The metal shell not only protects the pins but also adds mechanical strength, allowing these connectors to endure repeated plugging and unplugging. This durability makes them suitable for environments where they will be subject to frequent use or harsh conditions.

10. Variations and Custom Configurations

D-Sub connectors come in numerous variations to meet different needs:

- Standard density: These connectors feature a regular arrangement of pins.

- High-density: These versions pack more pins into the same shell size, allowing for more connections in a smaller space.

- Filtered and ruggedized versions: For specialized applications, such as military or aerospace, D-Sub connectors may come with built-in filtering or ruggedization to withstand harsh environments and ensure signal integrity.

Conclusion

D-Sub connectors remain a reliable and versatile option for connecting a wide variety of equipment. Their robust design, ability to transmit both power and signals, and availability in numerous configurations make them suitable for industries ranging from computing to industrial machinery and aerospace. Understanding the different types, uses, and benefits of D-Sub connectors can help you choose the right connector for your specific application.
